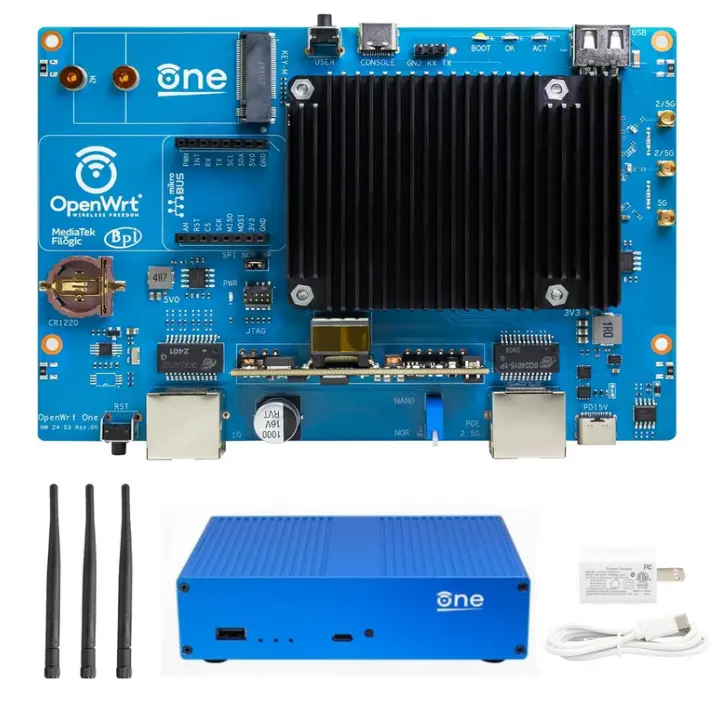

OpenWrt One

OpenWrt One is based on the MediaTek Filogic 820 SoC and has WiFi 6, dual-band, 3×3/2×2, 1x 2.5Gbit WAN, 1x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR (for recovery), M.2 SSD, USB-C Serial console and USB 2.0. Power Over Ethernet (POE): an IEEE 802.3af/at compliant device can power the device via the RJ-45 2.5 Gbps WAN connector.

Key features include:

• 1.3 MediaTek MT7981B (Filogic 820) processor with two ARM Cortex-A53 CPU cores
• 1GB DDR4 memory (onboard)
• 256MiB SPI NAND Flash and 16 MiB SPI NOR flash storage
• M.2 2242/2230 socket for PCIe Gen  2 x1 SSD (bring your own storage)
• MediaTek MT7976C dual-band WiFi 6 (2×2 2.4 GHz and 3×3 5 GHz)
• 2 RJ45 Ethernet ports: one 2.5 GbE + 1 GbE
• 1 x USB 2.0 Type-A host port
• 1 x USB Type-C (device, console)
• 1  x USB Type-C (power)
• RTC backup battery support
• PoE support
• MikroBUS socket for expansion modules
